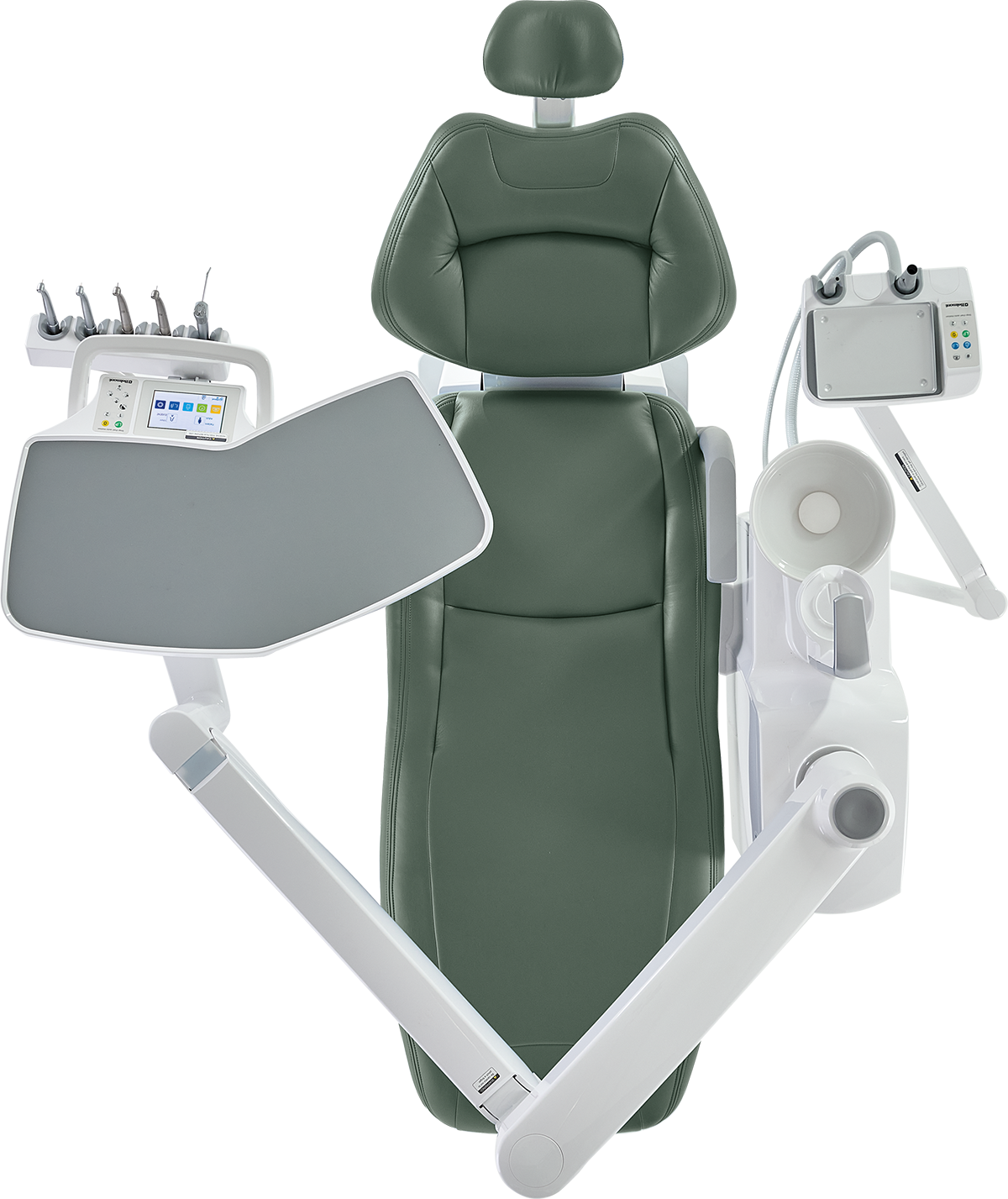

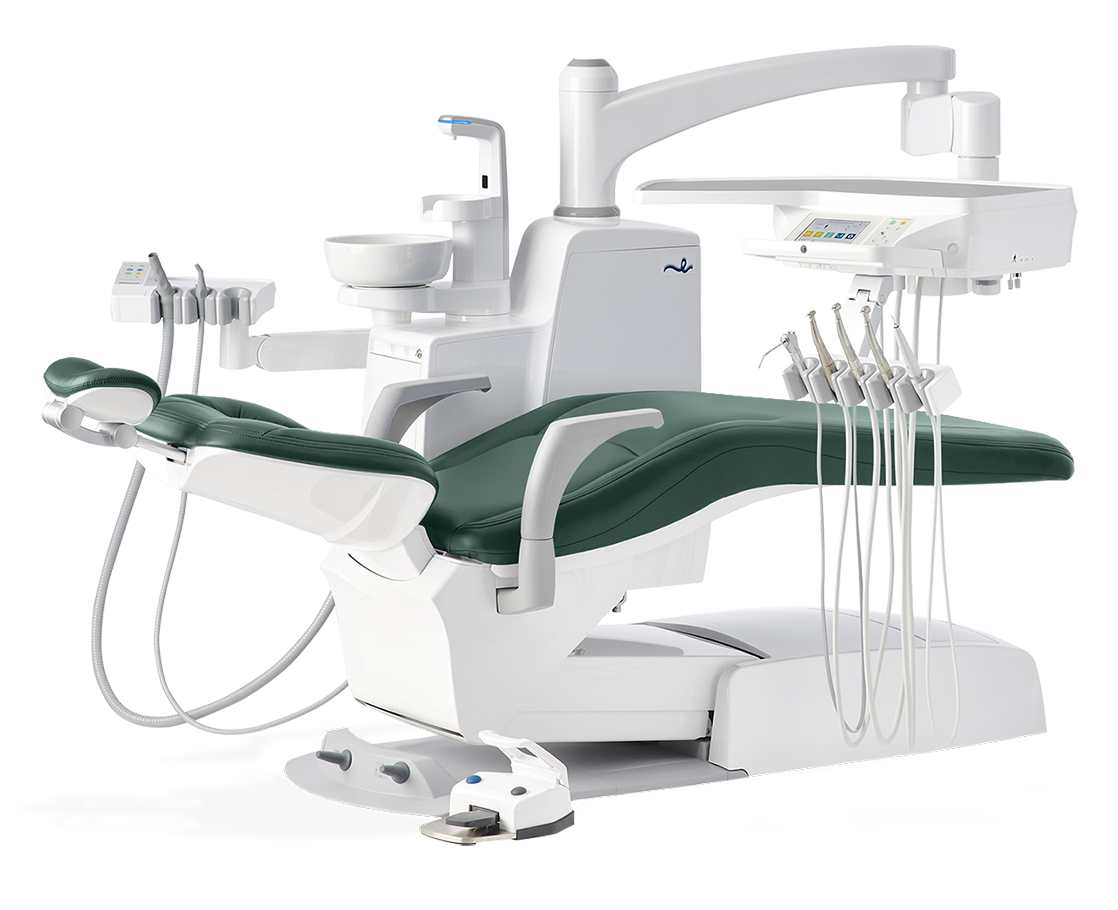

Eurus S1 Holder Type

Key features:

  • Over-the-patient delivery system has been designed with hygiene as a priority.
  • Everything has been designed for quick and easy movement across multiple axes.
  • New features include powerful touch-screen, integrated foot controls and advanced lighting.
  • Increased maximum weight capacity of 200kg.

Innovations include:

  • Twin-articulating headrest with more precise positioning and lighter adjustment for the operator.
  • Two pre-set positions, Last Position Memory (LP) & Auto-Return plus an increased six operator configurations.
  • Integrated foot storks for chair control – much tidier and more hygienic than a separate controller.

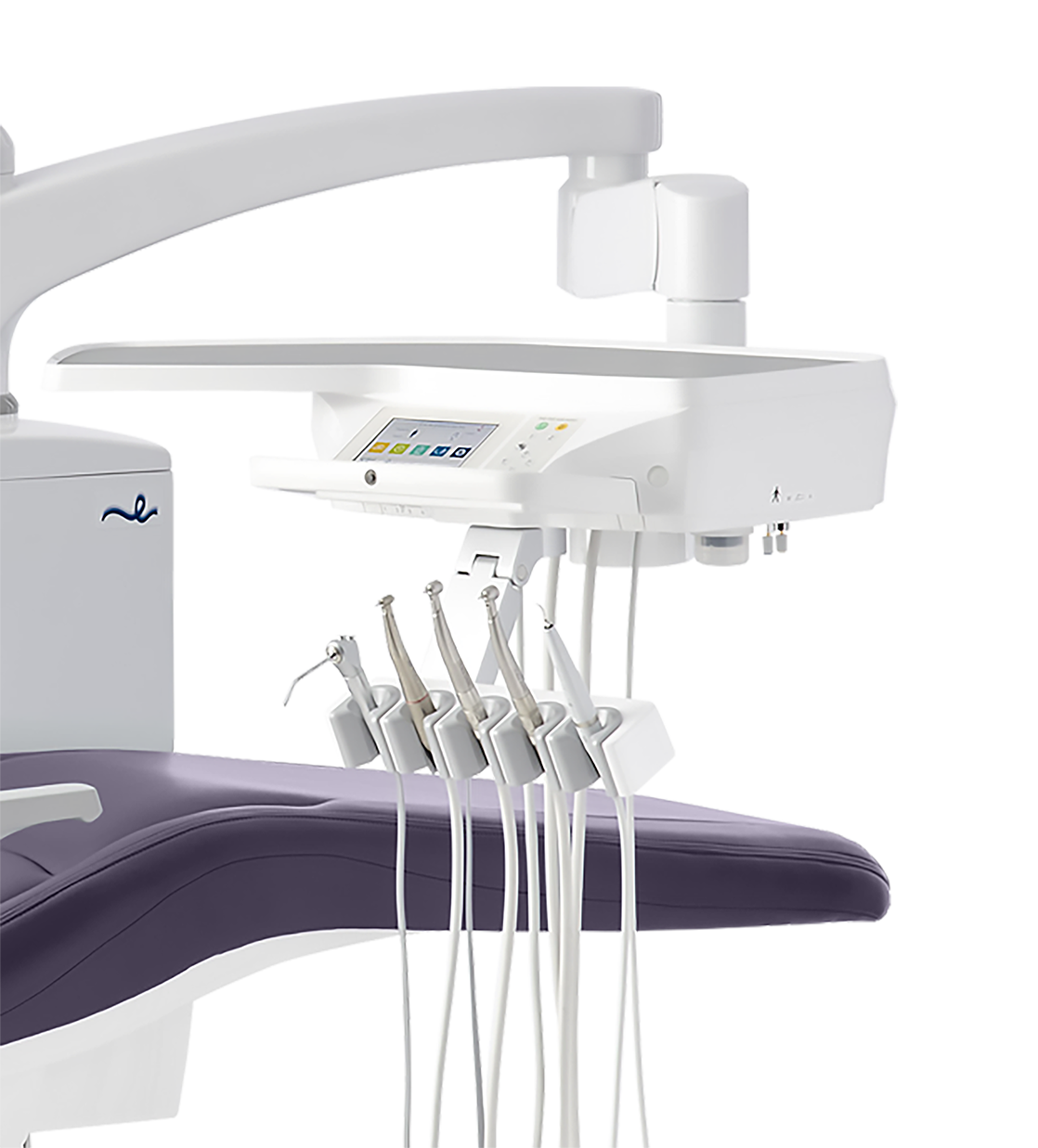

Intuitive touch-screen

The touch-screen offers one-touch control across a wide range of functions, with an easy-to-read display that tells you everything at a glance, including motor settings and torque. You can pre-programme settings and also restore to standard settings in just one touch.

The new touchpad can control the micro motor speed, torque, and rotation direction with preprogrammed settings. It can also control the turbine speed with more variation by using the foot pedal, and has a speed limit setting.

For the scaler, there are endo, perio and scaling control settings.
A chair locked indicator adds peace of mind for when an instrument is being operated.

Other features include a bowl flush, cup filler, spray air, and water spray on/off switches.

Ergonomic and smooth

For maximum flexibility, the table’s vertical range of motion is 525 to 1,505 mm for the contour type chair. The table is held by a flexible, easily movable arm.

The handle is designed for an easy grab-and-move motion. It also offers a convenient resting position for the hand to reduce stress and ensure accurate touch-panel operation.

The handpiece holder is independent from the table and can be freely adjusted across three axes to ensure complete comfort.

Easy cleaning

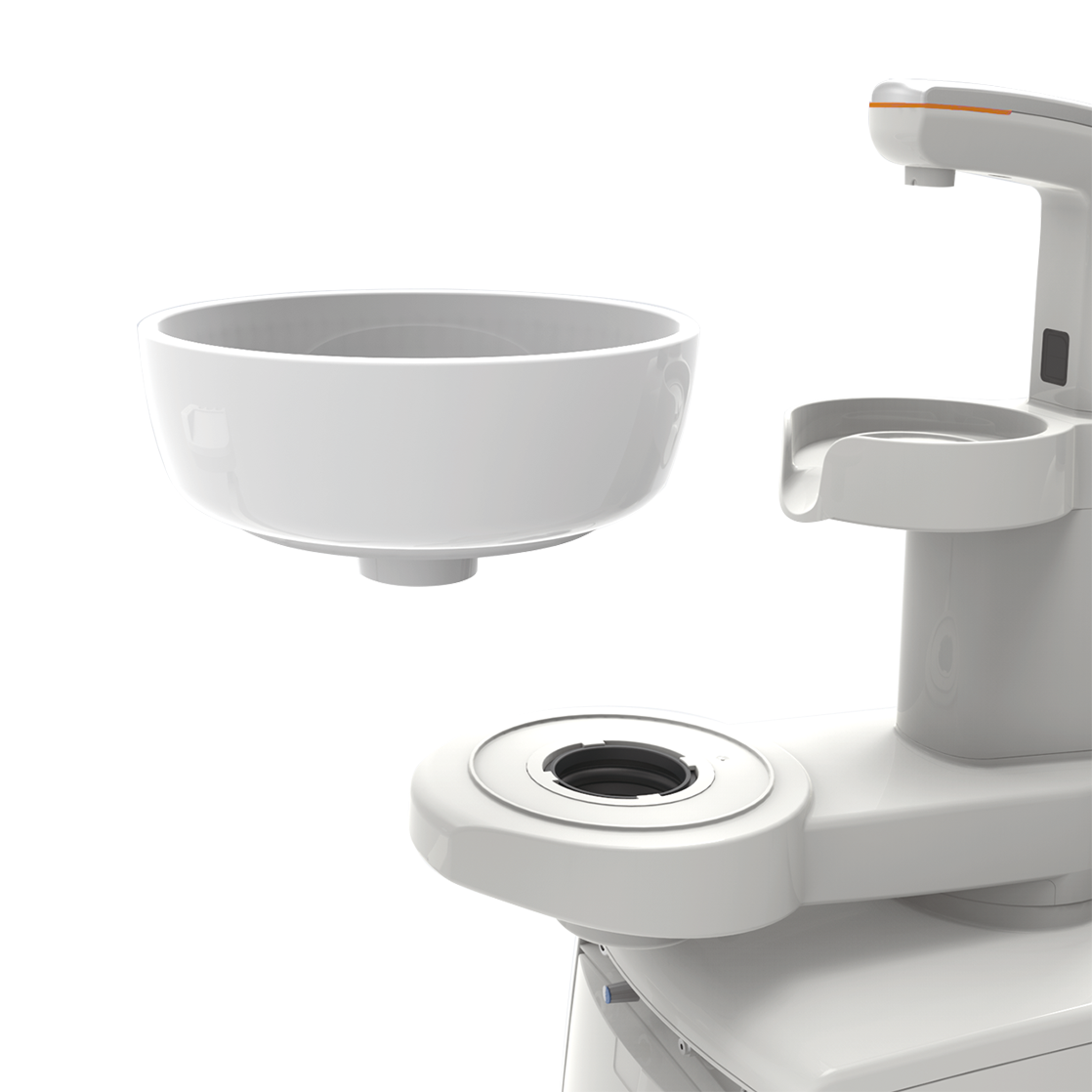

Everything is designed to assist with faster, easier and more thorough cleaning. Light handles, surface mats, instrument holders, handle covers and bowls are all easily detachable for cleaning. Hygiene inside the dental unit is maintained by waterline flushing.

New features

The internal large-capacity bottled water system has a low-water warning indicator. It can also be supplied with an optional Amalgam Separator for easy maintenance. With everything enclosed, the outer unit looks neat, streamlined and attractive.

Precision control

Stork controls are integrated within the chair base and are again easily foot controllable, with pre-set positioning options and manual fine-tune positioning plus one-touch cancel.

Smart lighting

The 10 LED operating light delivers advanced natural light at any intensity you choose. Even if your hands or body obscure some of the LEDs during treatment, the full beam remains. The slender, circular light head is easy to move across three axes and simple to clean, with autoclavable detachable handles.

Flexible efficiency

The Eurus S1 can be installed in a space as narrow as 1.8 metres wide. The over-patient arm has been designed for treatment in both standing and sitting positions.

The assistant holder can be supplied with your choice of up to four handpiece outlets.

The unit comes with a high flow rate vacuum system with improved rotating nozzle design for easier operation and greater durability.

Advanced safety

The many safety features include cut-out switches integrated within the chair base and the assistant arm. These automatically activate if unwarranted or potentially dangerous bodily contact occurs.

In addition, all chair movement control buttons will instantly stop the chair, if a pre-set or auto-return function are pressed in error.
You can also choose your preferred colour.

Upholstery Colour Examples

Upholstery Options

Luxury upholstery in Ultrasoft, Ultrasoft Pro or Pearlised colour ranges



Seamless upholstery in Ultrasoft, Ultrasoft Pro or Pearlised colour ranges



Seamless upholstery in Standard colour fabric



Pearlised. Pearlised material shown above.
See colour swatch brochure as further colour options available.

Find out more

To discover more, request a call back and/or arrange a showroom viewing, please visit our contact page.

You can also view other products in the Eurus S1 range, including the Eurus S1 Continental Rod Type and the Eurus Swivel Chair.
