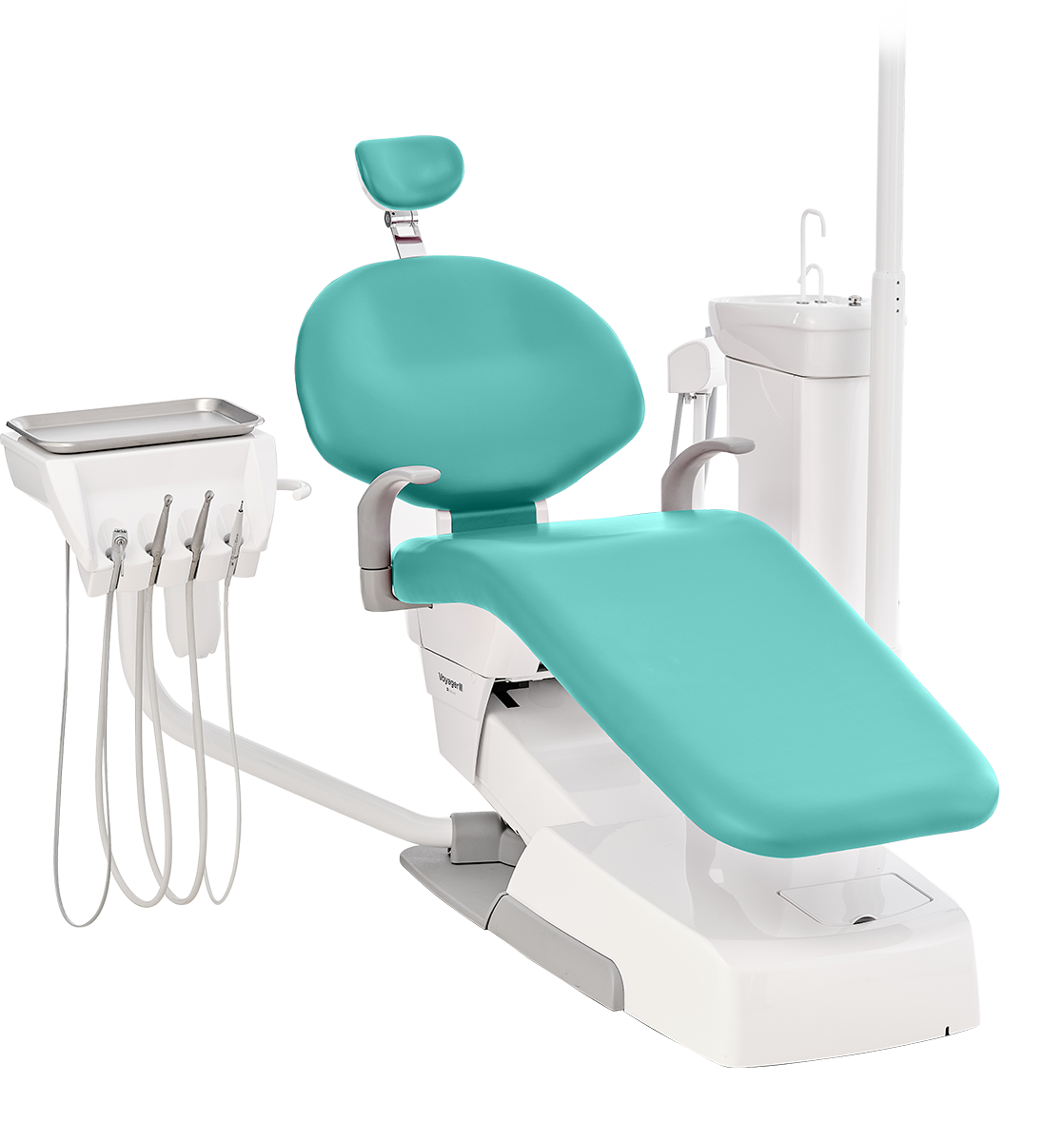

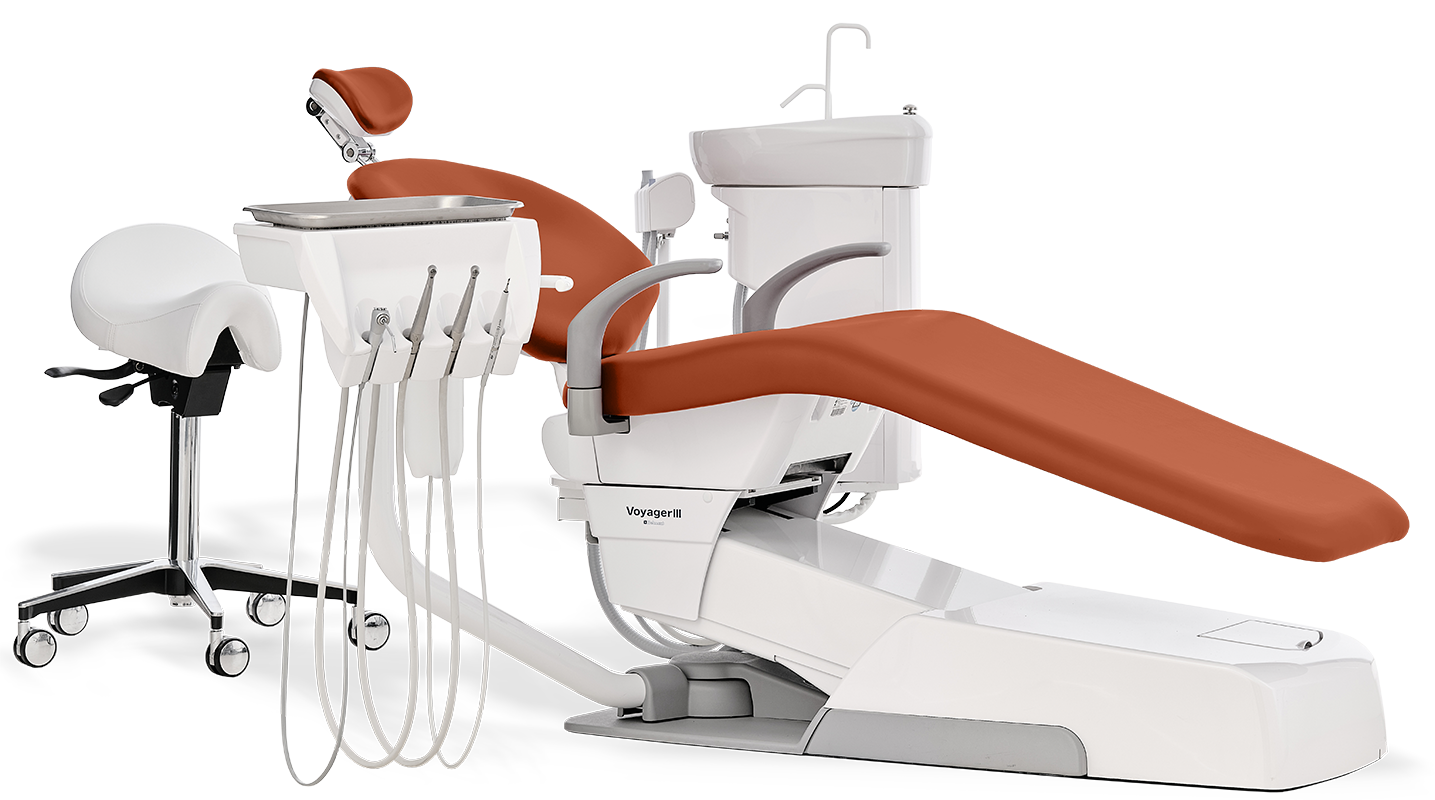

Voyager III 'Surgery System'

Operator’s table key features:

  • Air operation
  • Control panel for chair movements
  • Easy-clean surfaces
  • Height-adjustable
  • Removable steel tray and rubber mat



Chair key features:

  • Twin-articulating headrest
  • Lumbar support
  • Chair preset positions
  • Swing-out armrests (both sides)
  • 8-way foot control



Cuspidor key features:

  • Ambidextrous, 90º rotatable
  • Porcelain spittoon bowl
  • Manual cup-filler and bowl-flush
  • Assistant’s console
  • Detachable high-volume evacuator and saliva ejector
  • Detachable solids collector

2020 Offers +

FREE NSK Varios 170 non-optic scaler +
FREE upgrade to 320 LED light
with every Voyager III treatment centre.

Source better value >

Package consists of:

Voyager III dental chair features include:

  • Twin-articulating headrest
  • 2 preset positions, Last Position Memory (LP) and auto-return
  • Swing-out armrests (left and right)
  • Integral service centre with air and water filter regulators
  • 8-way foot control



Base-mounted swing-around delivery system (A) features include:

  • 3 handpiece outlets with individual air and water control
  • 3-way autoclavable syringe
  • Table safety lock device
  • Quick flush-out system
  • Bottled water system
  • Stainless steel instrument tray
  • Non-slip mat



Chair-mounted rotatable cuspidor unit features include:

  • Porcelain cuspidor bowl
  • Manual cup-filler and bowl-flush
  • 1 detachable high volume evacuator
  • 1 detachable saliva ejector
  • Easily-accessed and detached solids collector

UPHOLSTERY OPTIONS

Seamless upholstery in Ultrasoft or Ultrasoft Pro colour ranges

Seamless upholstery in Standard colour fabric

TREATMENT CENTRE PACKAGES

Voyager III ‘Surgery System’

Voyager III ‘SP’

OPERATING LIGHT PACKAGE OPTIONS

920LR LED unit-mounted

301U LED post-mounted

720SLR unit-mounted

PDF downloads:

Installation Manual (16.2MB)

Belmont Equipment Advice in a case of COVID-19 shutdown

You might be wondering what you should do with your treatment centres prior to closing your practice or is there any protocol that you may need to follow. We are sharing with you 8 simple steps on how to protect your dental equipment when leaving unused for long periods. Please read carefully prior to taking any action.

  1. Follow your normal waterline maintenance protocol in accordance with CQC guidelines until complete shutdown.
  2. If complete shutdown for an unspecified period of time is imminent take off the clean water bottle and tip any residue water away and put the bottle back on empty. After removing the couplings and handpieces from the delivery system hold the hoses over a bucket and press the flush button or run the automatic flush if your unit has one. It’s important remembering while flushing to press the syringe buttons in order to release any trapped water and continue to run the flush until the handpiece hoses run dry.
  3. Do not forget to clean your suction hoses and spittoon with your recommended suction cleaner. Then run water through the hoses to make sure any residue left in the hoses is diluted down.
  4. Make sure the suction pump is switched on before cleaning the hoses.
  5. When the system is completely dry and the suction hoses cleaned switch the main chair switch off and any chair isolator in the room “turn off”.
  6. If all the treatment centres in the practice are to be shutdown for a period of time make sure the staff turn off the compressor and the suction pump.
  7. If you are concerned about shutting down your equipment call your equipment dealer to help you run through this process safely. They will always be happy to help and advise at this difficult time.
  8. When the time comes to return the dental treatment centre back to full use, please be aware that you will need to test your waterlines as per your normal CQC protocol. This action is essential part of the process as you want to check that you don’t have any biofilm build-up during the period of stagnation.

We wish you and your families a safe transit through this difficult time. We are at our disposal to assist you with any further details: dental@takara.co.uk or service@takara.co.uk.
